Description

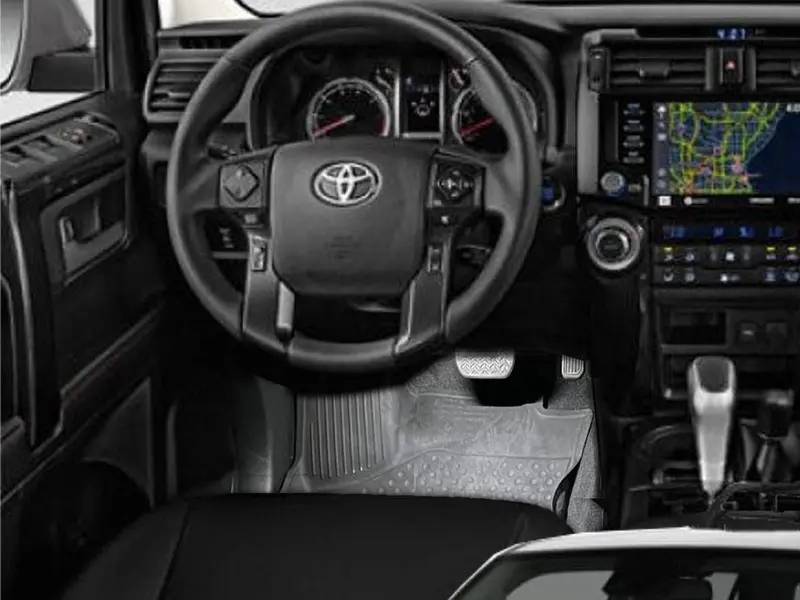

Get the look and feel of a modern luxury vehicle. Footwell lighting gives a sense of spaciousness and comfort while providing illumination to the darkest areas. Adding light to both driver and passenger footwell areas is easy with a VLEDS 4Runner footwell kit!
Dual Output The PWM dimmer module allows for two output modes depending on the scenario.
- COURTESY MODE: The lights are at full output (200LM per side) when the door is open and fades out with the map and dome light when the door is closed.

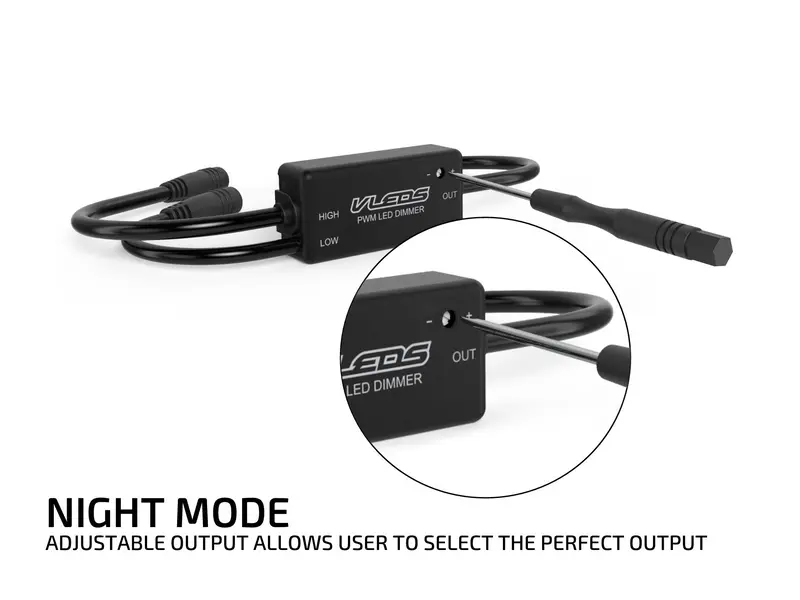

- NIGHT MODE: This gives you an adjustable low output light when the door is closed, and the parking or headlights are switched on. This drops the output to approximately 10LM on the lowest setting. If you want it brighter use the included screwdriver and turn it up to your liking.

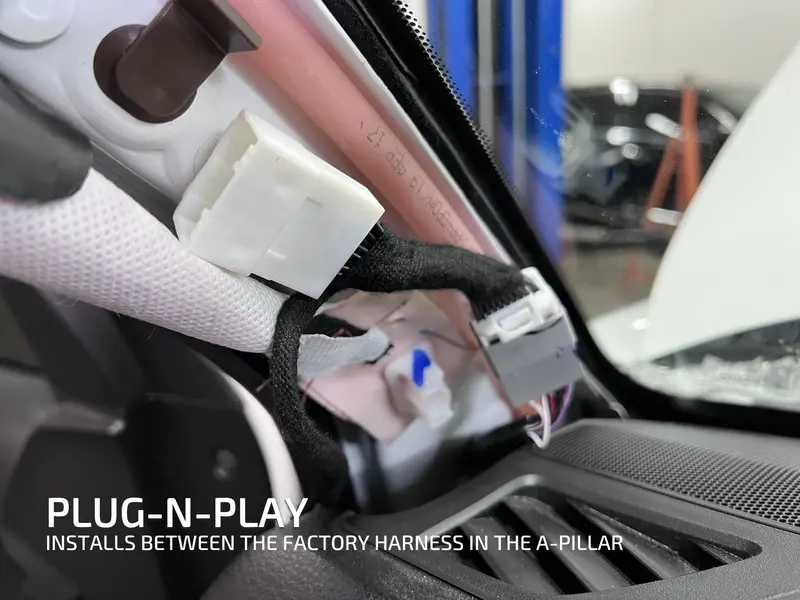

Plug-n-Play No splicing or tapping into your factory wires! The Redside Electric OEM-style breakout harness simply plugs into the A-pillar wiring harness. From there, connections are easily made to the PWM module and two striplight bars. For more detailed instructions, see the instructions tab.

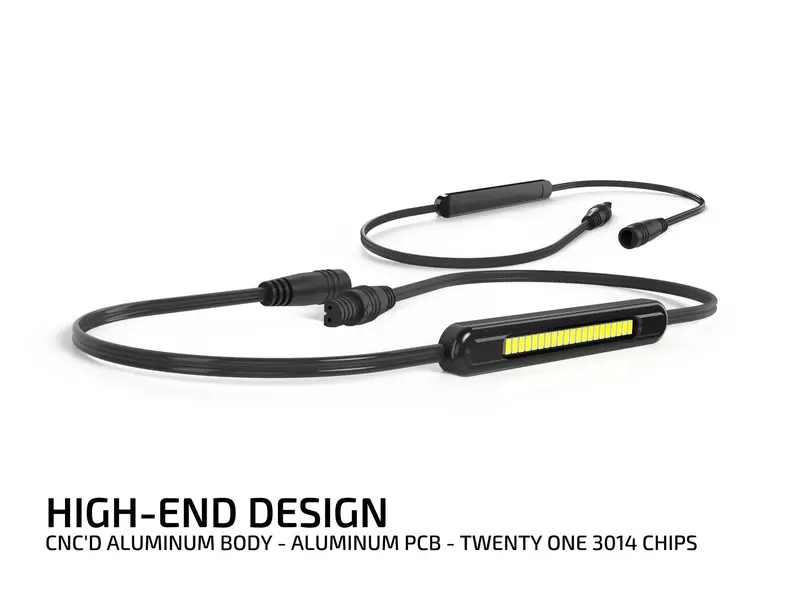

5X Brighter The striplight bars are small in size but produce a huge amount of light compared to cheap flexible strip lights that are ten times the size. No plastic or fiberglass parts here! The circuit boards are aluminum metal core PCBs housed in a CNC’d aluminum (not cast) body, then finished with a high-quality exterior-grade black anodizing. They not only look amazing, but they will last you for years!
ATTENTION! Not compatible with 2022+ Multi-Terrain Monitor equipped models.
INCLUDED:
2x BAR_21 LED Bar Light
2x BAR_21 LSE VHB Tape for Smooth Surfaces
1x VLEDS High/Low PWM Dimmer
1x Dimmer LSE Mounting Tape
1x PWM Adjustment Screwdriver
1x Redside Electric OEM-style Breakout Harness
1x Triangle Pry Tool
1x 4 Foot Wire Extension
8x Small Zip Ties
OPTIONAL REAR KIT:
2x BAR_21 LED Bar Lights
2x LSE VHB Tape for Leather Seats
2x BAR_21 Velcro Tape for Cloth Seats
2x 8 Foot Wire Extensions
1x 4 Foot Wire Extension
4x Small Zip Ties
| Easy Install | Plug and play OEM-style breakout harness (installs behind driver a-pillar) |
| Aluminum | Beautifully CNC’d all-aluminum body striplight bar with satin black anodized finish |
| Driver | Built-in current limiting resistor and diode protects the strip from reversed polarity installation |

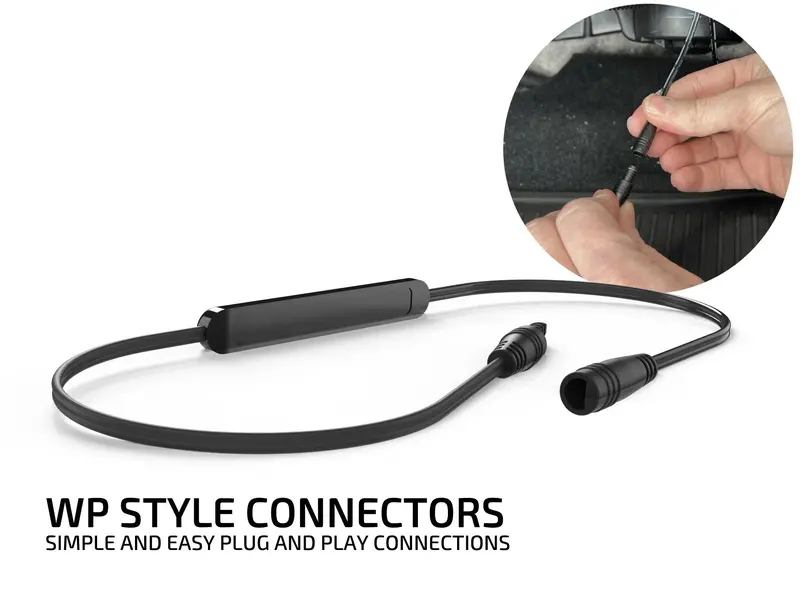

| Connections | Over-molded 2 pin connectors for easier installation and better reliability |

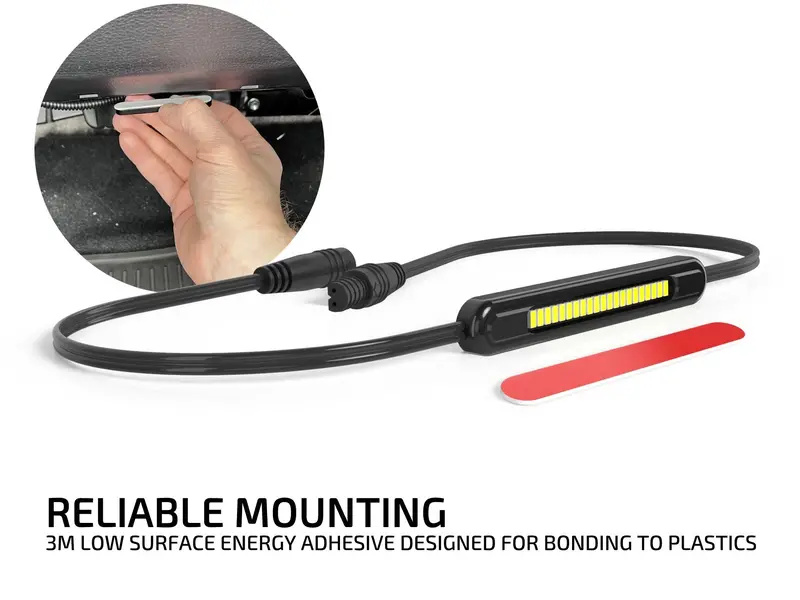

| Mounting | Super-strong 3M double-sided tape for mounting |
| Proprietary | 21x 3014 chips mounted to on an aluminum PCB that match all VLEDS LED bulbs |
